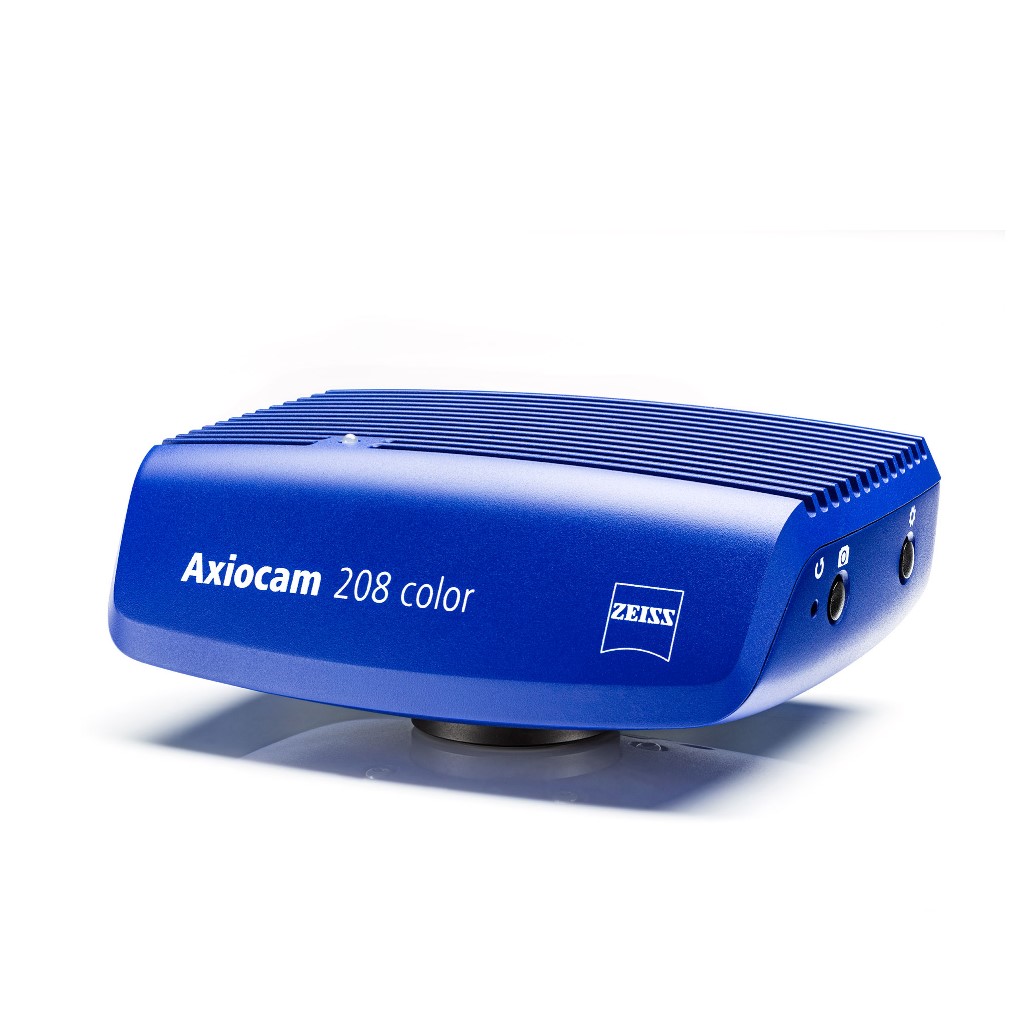

Microscopy Camera Axiocam 208 color Most versatile color camera for education, documentation and routine applications with standalone capability, USB3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core), Labscope and TWAIN plugin.
Camera package contains the following accessories:
– USB 3.0 hub Type-C, – USB 3.0 flash drive, Type-C and Type-A – USB 3.0 cable Type-C to Type-A – Power <(>&<)> signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope 5/7/Vario
– Power adapter with country-specific plug
Sensor: Sony CMOS image sensor Color, Rolling Shutter Number of Pixel: 3840 (H) x 2160 (V) = 8.3MP, Ultra HD (4K) Selectable Resolution: 3840 x 2160 = Ultra HD (4K) and 1920 x 1080 = Full HD (1080p) Pixel size: 1.85 µm x 1.85 µm Effective Area: 7.1 mm x 4.0 mm, equivalent to 1/2.1″ (8.1 mm diagonal)
Spectral range: approx. 400 nm – 700 nm, IR filter; RGB Bayer color mask Control buttons on camera for stand-alone use: 1x Image capture 1x OSD (On Screen Display menu) 1x Camera factory reset Status-LED for camera: color coded operation status
Stand-alone: Image storage format: TIFF or JPG
Video stream format: mp4
Live frame rate via HDMI: 30 fps @ 4K/1080p (also with HDR)
Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 3840 x 2160 up to 15 fps (ZEN blue edition) 1920 x 1080 up to 27 fps (ZEN blue edition) 1920 x 1080 up to 30 fps (Labscope)
Digitization: 24-bit (3 x 8-bit RGB) A/D conversion Integration time: 0.06 ms up to 1 s Gain: 1x – 22x Interfaces for Communication and for
Power: HDMI for monitor USB 3.0 Type C for USB hub, flashdrive, Wi-Fi adapter or, PC connection Ethernet (RJ45) for LAN connection
Micro-D for power and communication with dedicated stands
Optical interface: C-mount Max. file size per image: .tiff up to: 24 MB (not content dependent) .jpg up to: approx.0.5 MB – 3.3 MB (content dependent)
Size/Weight: approx. 135 x 97 x 54mm / 590 g
Housing: blue painted aluminum and cooling fins on the top plate
Registration: CE, RoHS, CSA
Power supply: via Micro-D interface
Power consumption: 9 W (24 V DC,0.375 A)
Environmental conditions: +10°C to +40°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required, indoor use
Supported Operating systems: for ZEN: Windows 10 x64 and higher for Labscope: Windows 10 x64 and higher, iOS v11 and higher, Android 9.0 and higher
Supported Application Software: ZEN v3.0 (blue edition) and higher ZEN core v2.7 and higher Labscope v2.9.1 and higher (Windows)/ v2.8.3 and higher (iOS), v4.0 and higher (Android)
TWAIN plugin: Software interface to control camera by 3rd party application software
The camera is network-enabled and can be used with the ZEISS iOS App, Android APP and ZEISS Labscope software.
