LOW COST – HIGH PERFORMANCE
The system consists of:
• Solenoid valve for inlet water
• Filter housing with a pretreatment consisting of active carbon and
particle fi lter
• Dry run protection for RO pump
• RO pump with AC motor mounted on vibration adsorption holder
• Pressure gauge to indicate operation pressure
• 1 RO-membrane made of Polyamide
• 1 stainless steel vessel for RO membranes with PP end caps
• Conductivity sensor c = 0.2
• Restrictor to adjust the concentrate fl ow
• 1000 l storage tank
• Conductivity meter LFW 200 with display for conductivity and
temperature, adjustable limit settings with acoustic signal
• Distribution pump with output fl ow rate of 0.8 m3/h (3.3 bar) up to
3.5 m3/h (1.4 bar)
• Set of connecting hoses for inlet and outlet
• Filter housing wrench
BENEFITS
• Compact design: RO, tank,
booster pump with small
footprint
• Low acquisition costs
• Includes digital conductivity
meter
• Made in Germany
TYPICAL APPLICATIONS
• Industry
• Galvanic
• Chemical applications
• Building cleaner
• Industrial glass cleaner
• Commercial/industrial
kitchens
• Washing machines
• Car wash facilities
RO High Volume, Water Systems

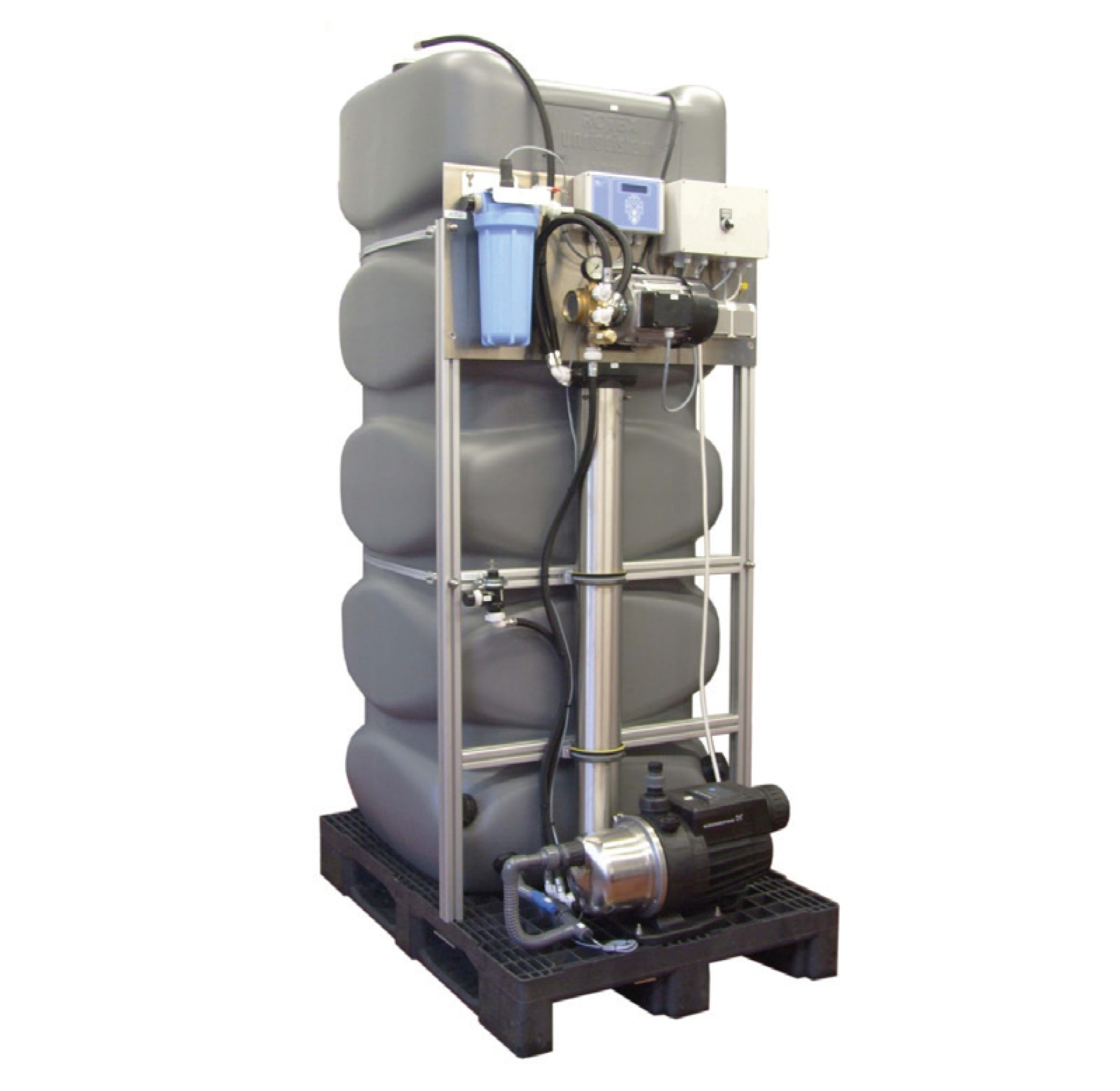

Ultra Clear™ RO 150 Basic Water System
LOW COST – HIGH PERFORMANCE
This is our most affordable RO purification system with high pure-water
output. It produces up to 150 l/h pure water directly from tap or softened
water and delivers it pressure-less into the built-in 1000 liter storage tank.
The tank is equipped with float switches to regulate the water production.
A softener is recommended if the water hardness exceeds 10° German
Hardness.
