Product Overview

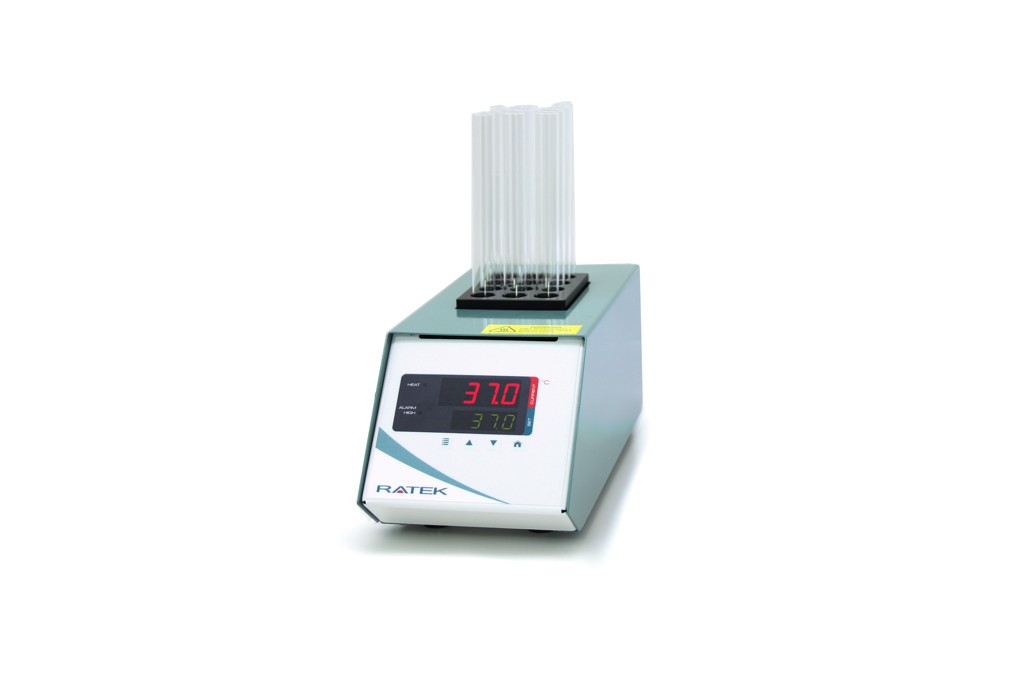

Ratek precision digital block heaters offer excellent temperature stability combined with a large active LED display for easy visibility from across the lab. Available in 3 sizes accommodating 1, 2 or 4 standard blocks, the DBHx000D range is the latest in Ratek’s long established history of quality Australian made block heaters.All models feature precision digital PID control with bright dual line LED display which indicates set and current temperatures, combined with simple up and down temperature control buttons. Independent concealed heaters heat each block individually to achieve rapid heat-up times and excellent spacial uniformity.A user-configurable process over-temp audible and visual alarm also provides the user with peace of mind. Perhaps the best new feature in the range is the capability to operate at up to 200° C as standard, allowing for a much wider range of digestion applications to be performed in addition to low temperature molecular and biological work.
Ratek precision digital block heaters offer excellent temperature stability combined with a large active LED display for easy visibility from across the lab. Available in 3 sizes accommodating 1, 2 or 4 standard blocks, the DBHx000D range is the latest in Ratek’s long established history of quality Australian made block heaters.All models feature precision digital PID control with bright dual line LED display which indicates set and current temperatures, combined with simple up and down temperature control buttons. Independent concealed heaters heat each block individually to achieve rapid heat-up times and excellent spacial uniformity.A user-configurable process over-temp audible and visual alarm also provides the user with peace of mind. Perhaps the best new feature in the range is the capability to operate at up to 200° C as standard, allowing for a much wider range of digestion applications to be performed in addition to low temperature molecular and biological work.
Ratek’s most advanced block heaters to date offer simplicity with accuracy and can be run day in day out for any number of general lab applications.
Applications
Dry Block Heaters are used for applications such as the preservation of samples and reaction, enzyme digestions, enzyme activity studies, DNA amplification, incubation and activation of cultures, melting/boiling points and nucleid acid hybridisations.
Dry Block Heaters are used for applications such as the preservation of samples and reaction, enzyme digestions, enzyme activity studies, DNA amplification, incubation and activation of cultures, melting/boiling points and nucleid acid hybridisations.
Specifications
| Power requirements | 240 VAC/50hz 170 watts | |
| Control type | Precision digital microprocessor | |
| Control range | Temperature range ambient + 5°C to 200°C (indicated in 0.1°C increments) | |
| Control stability | +/- 0.2°C with 0.1°C indication | |
| Safety features | – User configurable over-temperature process alarm – Independent manual reset element over-temperature safety cutout (internal) – Over-current fail-safe fuse |
|
| Overall dimensions | W130 x D315 x H125 mm | |
| Weight | 3.2 kg (without block) |
Also Known As
Dry Bath Incubator, Test Tube Heater, Test Tube Warmer, Laboratory Tube Warmer, Constant Temperature Dry Bath Heater, Dry Block Heating System
Dry Bath Incubator, Test Tube Heater, Test Tube Warmer, Laboratory Tube Warmer, Constant Temperature Dry Bath Heater, Dry Block Heating System
