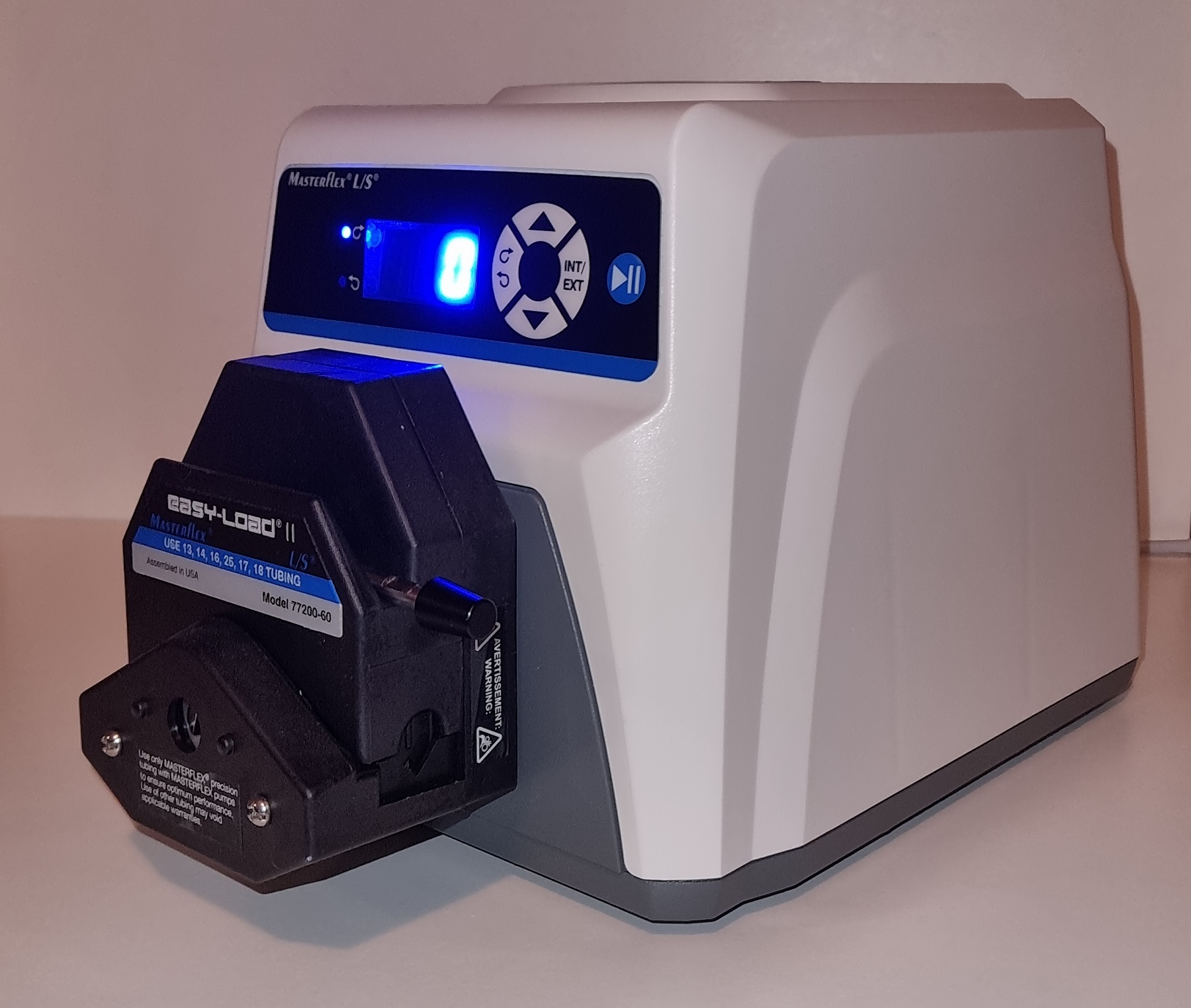

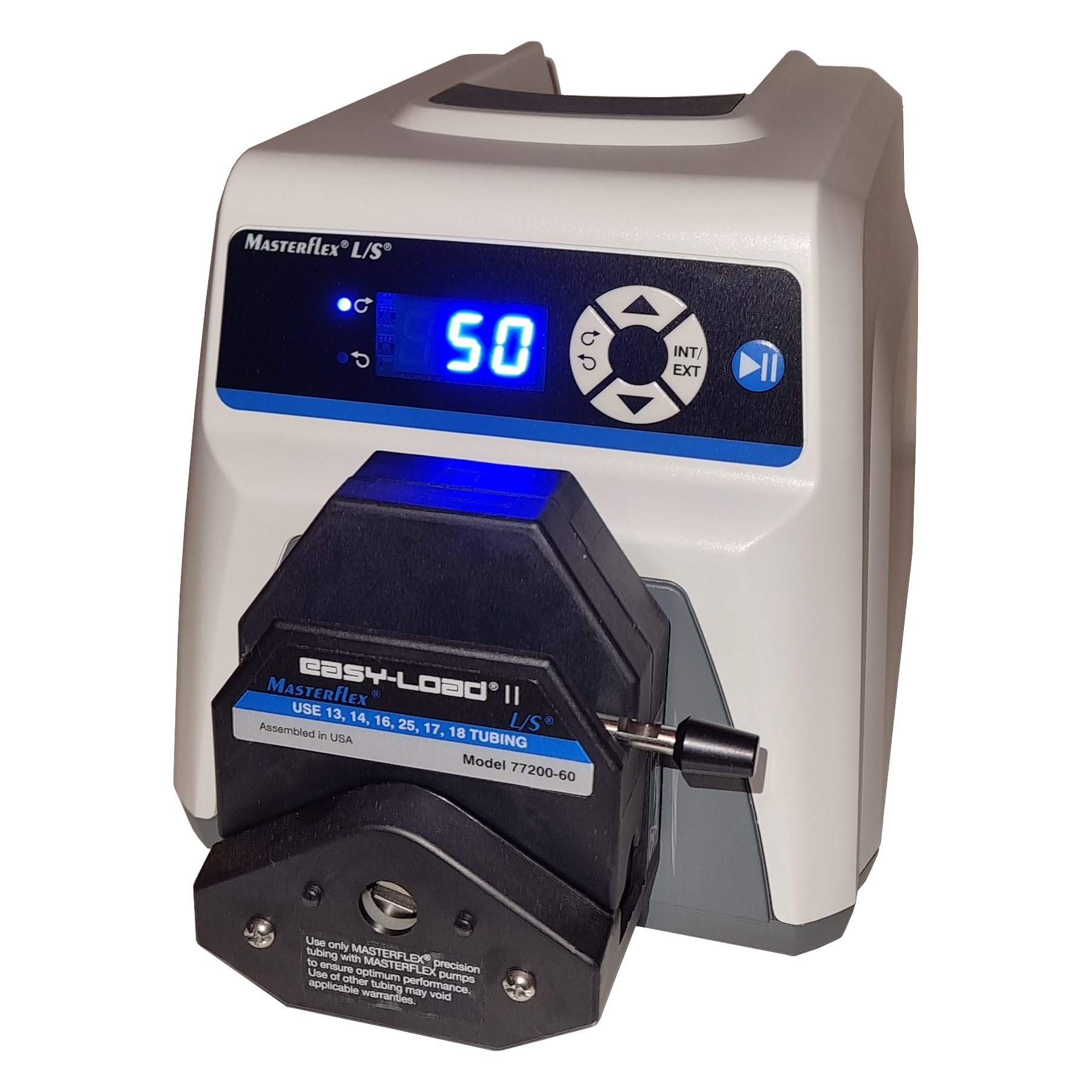

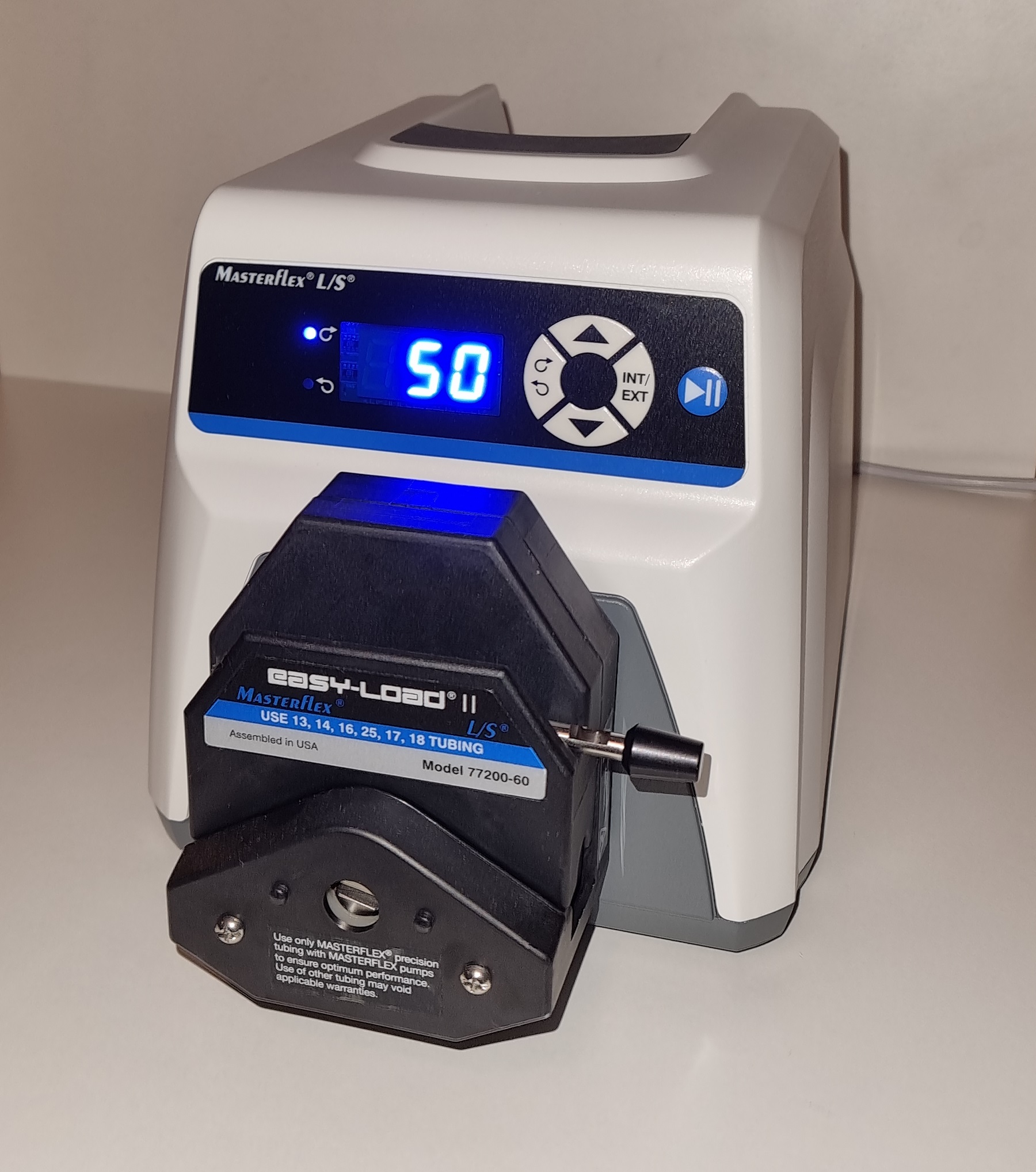

Masterflex Peristaltic Pump with Pump Head

Includes 77200-60 pump head as shown in picture

Key Features
Flow rate 0.06 to 3400 ml/min—flow rate depends on drive rpm, pump head, and tubing size
Three digit LED display shows motor rpm — confirm speed setting at a glance
Reversible motor—purge tubing before or after pumping; pump fluid in either direction
LED indicators confirm motor direction
Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications
Separate speed and power (on/off) control — maintain speed setting while turning pump on/off
Stackable, splash-resistant ABS plastic housing; IP33 rated

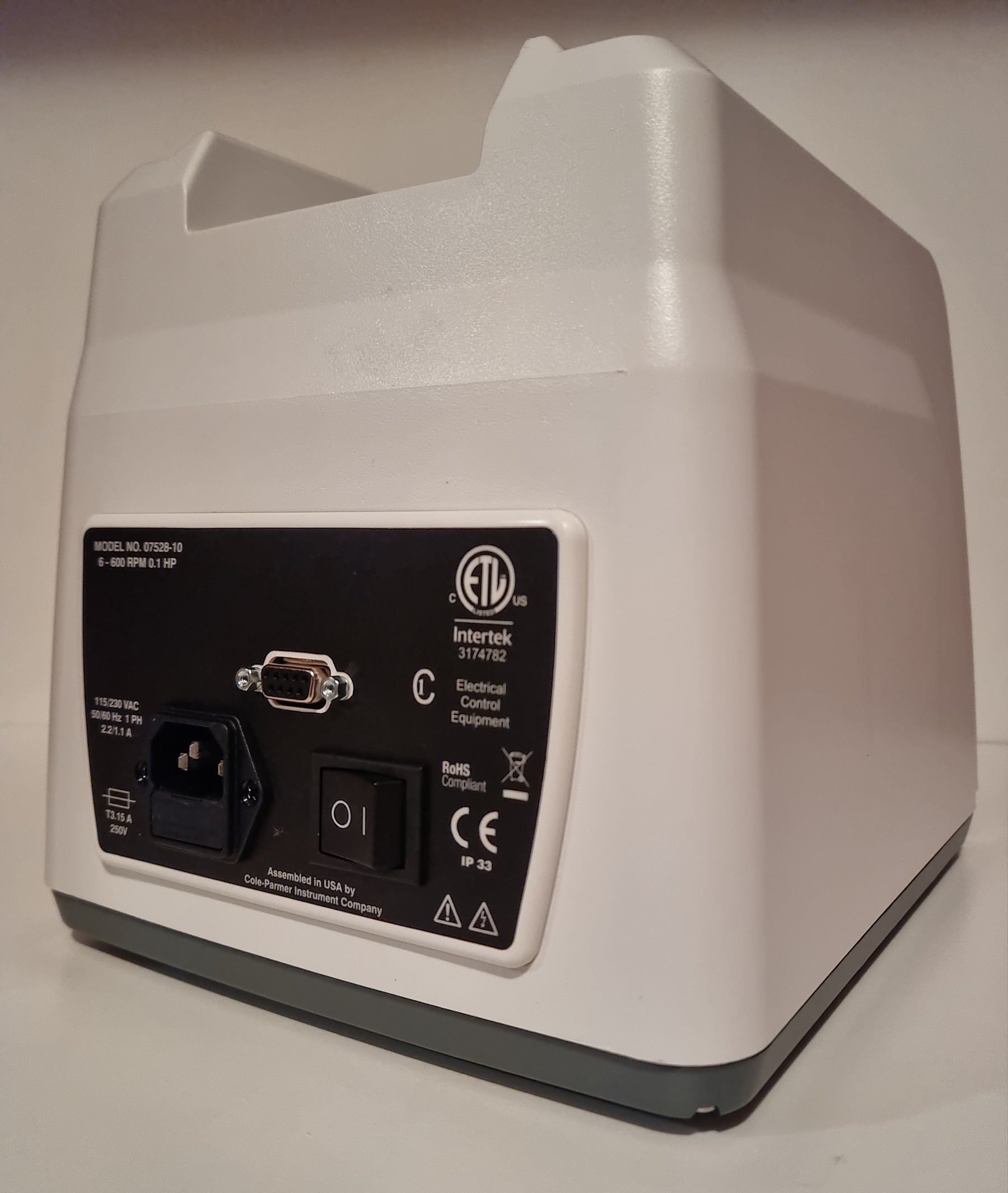

Remote control capabilities via a DB9 female connector on back of drive
Speed control input: 4 to 20 mA or 0 to 10 VDC
Pump direction (CW/CCW) via open collector or contact closure
Start/stop via open collector or contact closure
Membrane keypad for easy up-front control of speed, direction, and start/stop
Designed with speed range of 6 to 600 rpm

More About This Item

Don’t lose control of your metering applications—digital display gives you repeatable control.

These accurate analog console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires DB9 male connector or cable assembly. Use remote connector for control of start/stop via contact closure or open collector (5 V TTL); control start/stop via footswitch or handheld remote.
